Model SV12 to SV600
Flow rate 12gpm up to 600gpm, Operation status visuabl
and audible, Lamp life timer 9000 hours, Total running days
| Model | SV12 | SV24 | SV36 | SV50 | SV80 | SV100 | SV125 | SV150 | SV200 | SV250 | SV300 | SV350 | SV400 | SV500 | SV600 |
|
Flow Rates @ 30mJ/cm2, gpm(m3/hr) |
12 (3) |
24 (6) |
36 (8) |
50 (11) |
80 (18) |
100 (23) |
125 (28) |
150 (34) |
200 (45) |
250 (57) |
300 (68) |
350 (80) |
400 (91) |
500 (115) |
600 (136) |
|
Flow Rates @ 40mJ/cm2, gpm(m3/hr) |
9 (2) |
18 (4.1) |
27 (6.1) |
38 (8.6) |
60 (14) |
75 (17) |
93 (21) |
113 (26) |
150 (34) |
188 (43) |
225 (51) |
263 (60) |
300 (68) |
375 (85) |
450 (102) |
| Inlet / Outlet 1 | 1” | 1” | 1½” | 1½” | 2” | 3” | 3” | 3” | 4” | 4” | 4” | 4” | 6” | 6” | 6” |
| Ultraviolet Lamp | Part# G36T5L/4-LT, 39 Watts,425mA, 254nm | Part# GHO36T5L/4-LT, 80 Watts, 800mA, 254nm | Part# GHO64T5L/4-LT, 155 Watts, 800mA, 254nm | ||||||||||||
| Quartz Sleeve | Part# QS900-BO, 900mm, Both Sides Open | Part# QS1575-BO, 1575mm, Both Sides Open | |||||||||||||
| Ballasts | Par# GDB42540L2,110V.-240V./50-60Hz | Par# GDB80095L2, 110V.-240V./50-60Hz. | Part# GDB800155L2, 110V.-240V./50-60Hz. | ||||||||||||
|
Number of Lamp/ Sleeve/Ballasts |
1 | 2 | 3 | 2 | 3 | 4 | 5 | 6 | 4 | 5 | 6 | 7 | 8 | 10 | 12 |
| Timer Monitor | Lamp Operating Hours Monitor, Part No. GDT-9000 | ||||||||||||||
| Features | Lamp Operating Indicator, Audible Lamp Failure, Lamp Operating Hours up to 9000hr, Total Running Days, Dry Contact | ||||||||||||||
| Sensor | Optional, Part No. GDS254NM20-V | ||||||||||||||
| ▶ Flow Rates Stated at 95% UV Transmittance of End of Lamp Life, 20ºC | |||||||||||||||

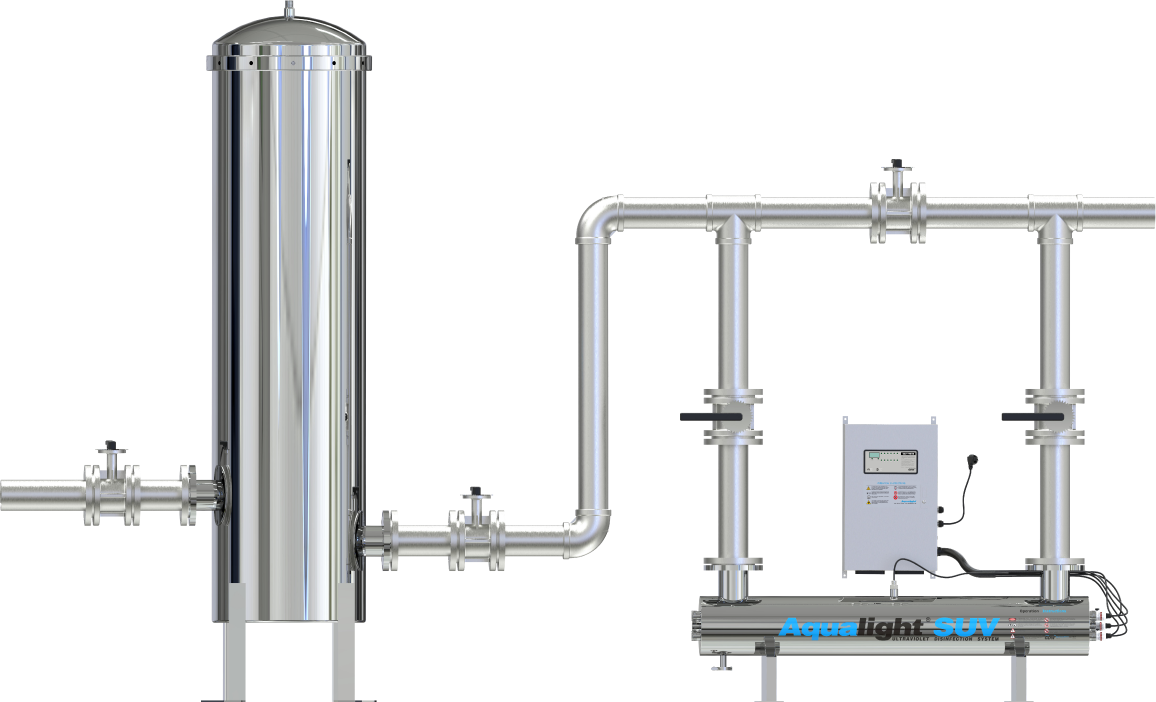

INSTALLATIONlayout

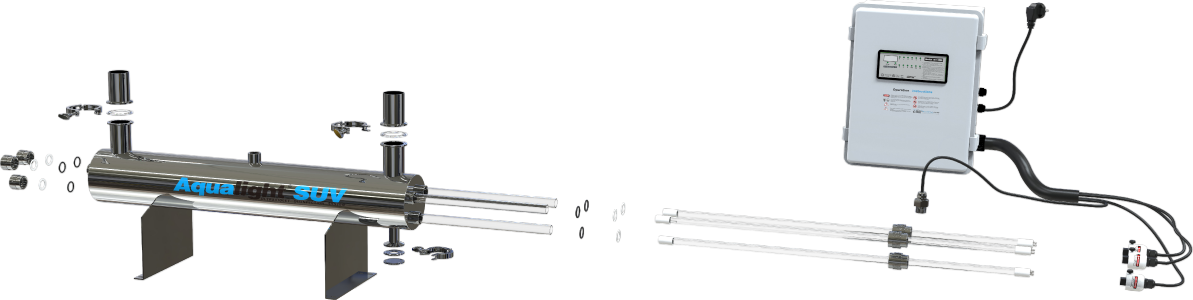

EXPLODEDview

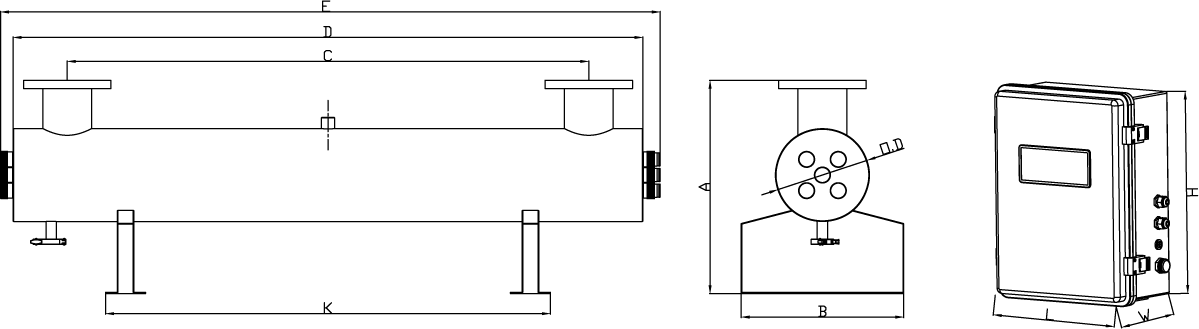

DIMENSIONdata
unit: mm
| Model No. | Lamp No. | A | B | O.D. | C | D | E | K | Control Panel | ||
| L | W | H | |||||||||
| SV12 | 1 | 300 | 180 | 108 | 740 | 847 | 930 | 518 | 300 | 180 | 400 |
| SV24 | 2 | 300 | 180 | 108 | 740 | 847 | 930 | 518 | 300 | 180 | 400 |
| SV36 | 3 | 346 | 250 | 133 | 740 | 847 | 930 | 540 | 300 | 180 | 400 |
| SV50 | 2 | 346 | 250 | 133 | 740 | 847 | 930 | 540 | 300 | 180 | 400 |
| SV80 | 3 | 418 | 300 | 168 | 678 | 847 | 930 | 640 | 400 | 200 | 500 |
| SV100 | 4 | 479 | 390 | 219 | 650 | 847 | 930 | 640 | 400 | 200 | 500 |
| SV125 | 5 | 479 | 390 | 219 | 650 | 847 | 930 | 640 | 400 | 200 | 500 |
| SV150 | 6 | 479 | 390 | 219 | 650 | 847 | 930 | 640 | 400 | 200 | 500 |
| SV200 | 4 | 504 | 390 | 219 | 1250 | 1512 | 1590 | 1070 | 450 | 190 | 600 |
| SV250 | 5 | 504 | 390 | 219 | 1250 | 1512 | 1590 | 1070 | 450 | 190 | 600 |
| SV300 | 6 | 504 | 390 | 219 | 1250 | 1512 | 1590 | 1070 | 450 | 190 | 600 |
| SV350 | 7 | 504 | 390 | 219 | 1250 | 1512 | 1590 | 1070 | 450 | 190 | 600 |
| SV400 | 8 | 504 | 390 | 219 | 1185 | 1512 | 1590 | 1070 | 600 | 190 | 700 |
| SV500 | 10 | 560 | 390 | 275 | 1185 | 1512 | 1590 | 1070 | 600 | 190 | 700 |
| SV600 | 12 | 560 | 390 | 275 | 1185 | 1512 | 1590 | 1070 | 600 | 190 | 700 |
