ULTRAVIOLET WATER DISINFECTION
Part No. BAP2011
  • 110V./50-60Hz.
  • Operate one lamp 10~20 Watts 425mA
  • Lamp operating indicator
  • Audible lamp failure
  • UL certificate
Part No. BAP2022
  • 220V./50-60Hz.
  • Operate one lamp 10~20 Watts 425mA
  • Lamp operating indicator
  • Audible lamp failure
  • CE RoHS certificate
Part No. BAP4011
  • 110V./50-60Hz.
  • Operate one lamp 10~41 Watts 425mA
  • Lamp operating indicator
  • Audible lamp failure
  • 5V. output
  • UL certificate

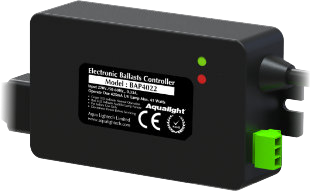

Part No. BAP4022
  • 220V./50-60Hz.
  • Operate one lamp 10~41 Watts 425mA
  • Lamp operating indicator
  • Audible lamp failure
  • 5V. output
  • CE RoHS certificate

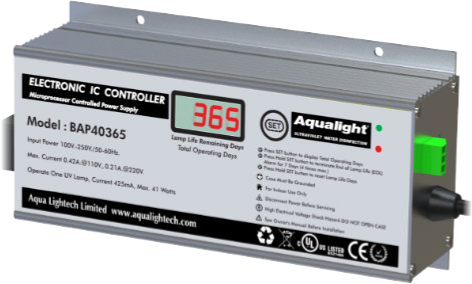

Part No. BAP40365

Universal voltages 100-250V./50-60Hz.
Operate one lamp 10~41 Watts 425mA .
Lamp operating indicator
Audible lamp failure
Lamp life 365 days countdown, resettable
Total running days, non-resettable
Dry contact
UL, CE, RoHS certificate

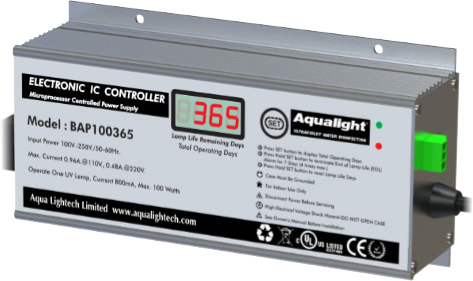

Part No. BAP100365

Universal voltages 100-250V./50-60Hz.
Operate one lamp 35~100 Watts 800mA .
Lamp operating indicator
Audible lamp failure
Lamp life 365 days countdown, resettable
Total running days, non-resettable
Dry contact
UL, CE, RoHS certificate

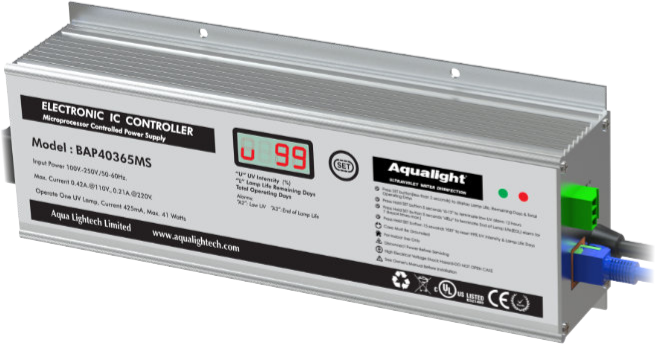

Part No. BAP40365MS

Universal voltages 100-250V./50-60Hz.
Operate one lamp 10~41 Watts 425mA .
Intensity monitoring alarm
Lamp operating indicator
Audible lamp failure
Lamp life 365 days countdown, resettable
Total running days, non-resettable
Dry contact
UL, CE, RoHS certificate

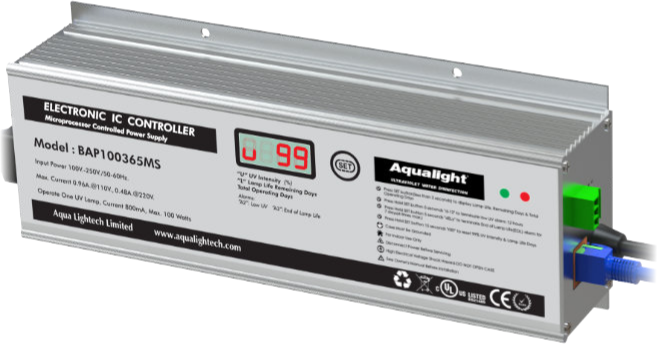

Part No. BAP100365MS

Universal voltages 100-250V./50-60Hz.
Operate one lamp 35~100 Watts 800mA.
Intensity monitoring alarm
Lamp operating indicator
Audible lamp failure
Lamp life 365 days countdown, resettable
Total running days, non-resettable
Dry contact
UL, CE, RoHS certificate

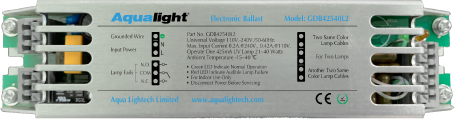

Part No. GDB42540L2

Universal voltages 110-240V./50-60Hz.
Operate one lamp 21~40 Watts 425mA.
Lamp operating indicator
Audible lamp failure
CE, RoHS certificate

Part No. GDB80095L2

Universal voltages 110-240V./50-60Hz.
Operate one lamp 35~95 Watts 800mA.
Lamp operating indicator
Audible lamp failure
CE, RoHS certificate

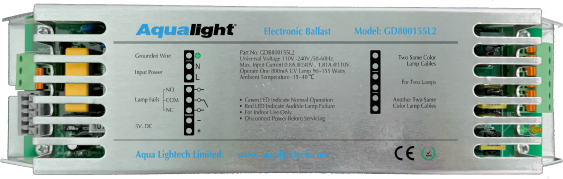

Part No. GDB800155L2

Universal voltages 110-240V./50-60Hz.
Operate one lamp 90~155 Watts 800mA.
Lamp operating indicator
Audible lamp failure
CE, RoHS certificate

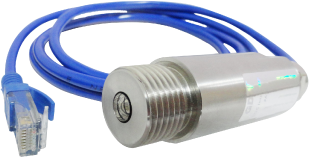

Part No. GDS254NM15-V

Ultraviolet 254nm wavelength sensor
Voltage signal interfaces
Material SS316,
Connection port ½"
RJ45 connector (BAP40365MS,
BAP100365MS)

Part No. GDS254NM20-V

Ultraviolet 254nm wavelength sensor
Voltage signal interfaces
Material SS316,
Connection port ¾"
Connect to GDT-9000 monitor

Dry contacts are typically used to operate solenoid valve. When lamp fails, the dry contact relay will be activated to operate solenoid valve, horn, buzzer or remote light. (NOTE: Any remote piece of equipment hooked up to the dry contacts must obtain their power from another source).
These dry contacts can be wired for a normally open (N.O.) or normally closed (N.C.) operation. The dry contacts will remain either closed (N.C.) or open (N.O.) until ultraviolet lamp in normal operation.
Example: solenoid valve(normal closed) can be wired (N.O.), the valve will be closed when lamp fails.
