• Input Power : 2pcs AA battery, Dimensions : 66x56x26mm
• Operation : Signal cable connected controller(suit BAP4011 and
BAP4022 only), countdown with controller's operation. Otherwise, timer
countdown itself.

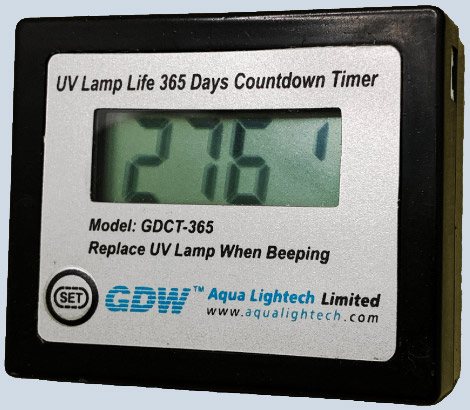

• 365 Days Count Down : Simple and effective way for the home-owner to
be notified when their UV lamp needs to be replaced. Provides 365 days
countdown to meet the standard replacement time for your UV lamp
with basic controller.
• Audible Alarm : After countdown completion, it sounds an audible alarm
to alert the need to replace new UV lamp.
• Blinking Display : After countdown completion, the display notifies that
365 days have expired.
• Count Up Expired Days : Once countdown is expired, the timer counts
up to indicate how many days have passed after the 365 days have
expired

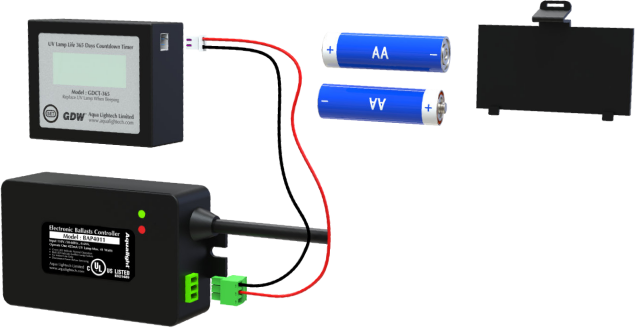

1. Power on the controller (BAP4011 and BAP
4022) of UV system

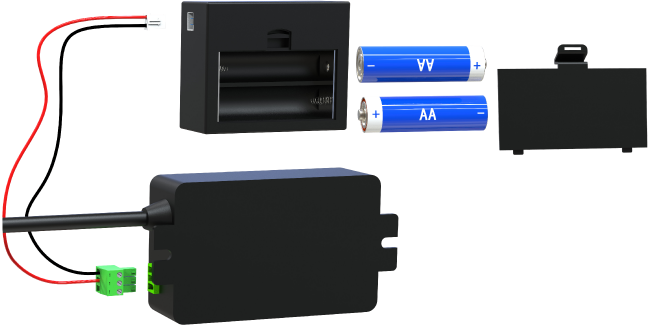

2. Signal cable (red/black) connect timer with
controller (suit BAP4011 and BAP 4022 only),
then install battery into timer
3. The timer will detect the signal from controller
for counting (if none cable connection, timer
countdown itself)
4. Strongly recommend to change new battery when
replace new lamp
5. Mute Alarm : press buttonless than 2 seconds
6. Reset to 365 Display : press button 5 seconds to
reset 365 days when replace new lamp or reinstall battery
