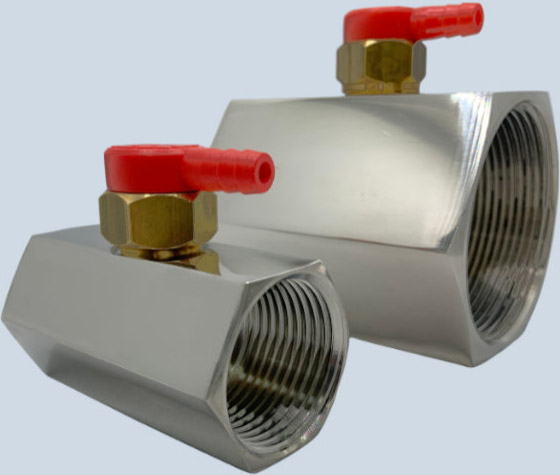

Integral temperature management valve for use on systems incorporating high-outt put (800mA) UV lamps. This fully automatic valve is installed on the outlet port of the disinfection system and will discharge a small amount of water to drain when the system reaches a higher temperature. This valve is perfect for applications with extended no flow conditions, as it allows the lamp to operate within its optimal operating parameters.
Part Number | Connection | Operation Temperature | Max. Pressure | Hose Barb |
TMV3870-304 | 1” Female | 56ºC(135ºF) | 145psi | Ø7mm*2m |
TMV4870-304 | 1½” Female | 56ºC(135ºF) | 145psi | Ø7mm*2m |
TMV5870-304 | 2” Female | 56ºC(135ºF) | 145psi | Ø7mm*2m |
TMV3870-304 | 1” Female | 56ºC(135ºF) | 145psi | Ø7mm*2m |
TMV4870-304 | 1½” Female | 56ºC(135ºF) | 145psi | Ø7mm*2m |
TMV5870-304 | 2” Female | 56ºC(135ºF) | 145psi | Ø7mm*2m |
GDTRV-20-0070 | 3/8” Male | Thermal Relief Valve for TMV3870-304, TMV3870-316 , TMV4870--304, MV4870-316 | ||
GDTRV-20-0071 | ½” Male | Thermal Relief Valve for TMV5870-304 and TMV5870--316 | ||
GDHT-72000 | Ø7mm | 2 Meters Hose Tubing |

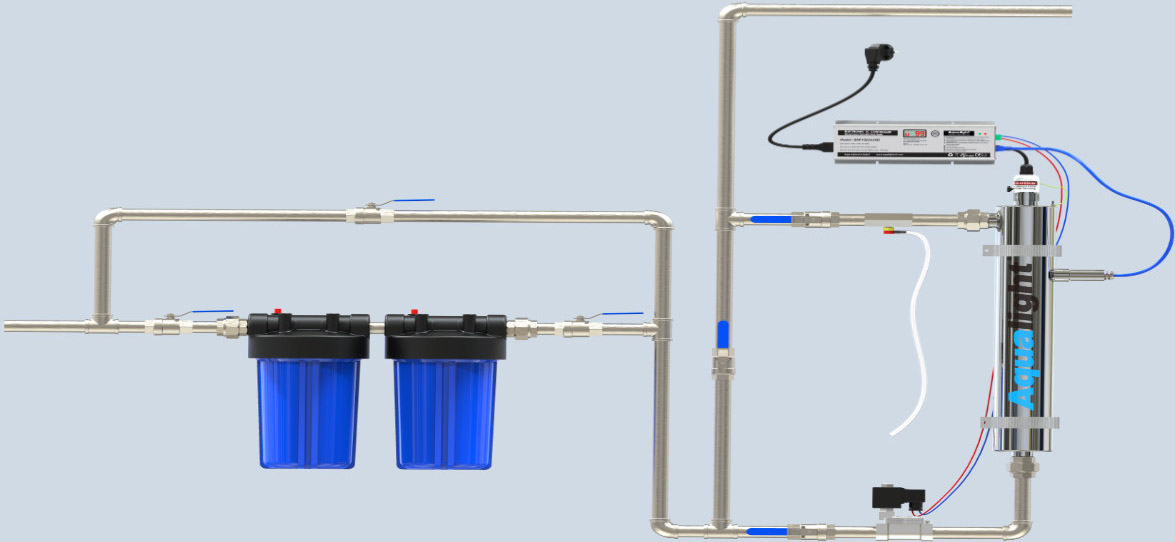

1. Install temperature management valve directly onto output port of the UV reaction chamber using teflonsealing tape to seal the threads.
2. Red barbed plastic fitting must be below the level of outlet to ensure that air is not trapped in the valve.
3. Connect the outlet piping to the output of temperature management valve using teflon sealing tape to sealthe threads.
4. Connect the plastic tubing supplied to the red barbed plastic fitting on the temperature management valve.
5. Secure the other end of the plastic tubing to a suitable drain
